Product Details

Garbage truck

  • Category : Faw-Trucks
  • Sub Category : Special Vehicles
  • SKU : Garbage truck

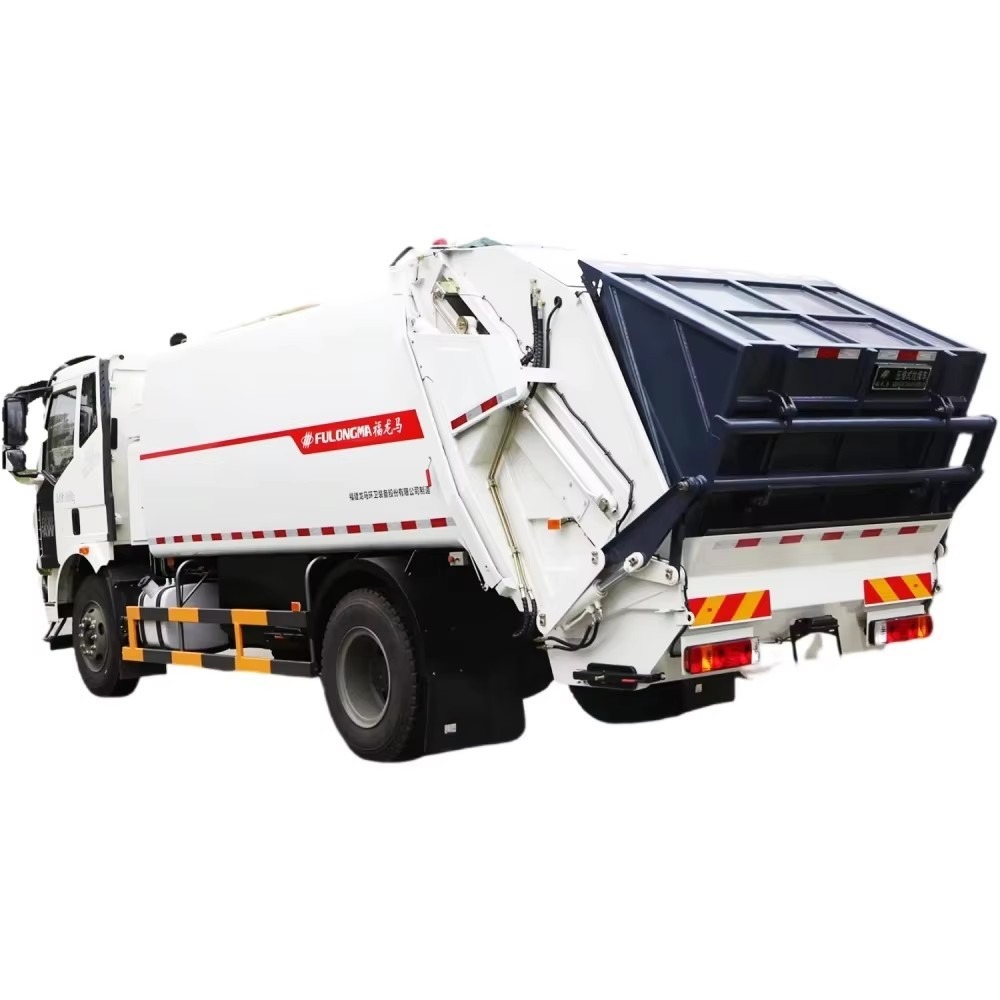

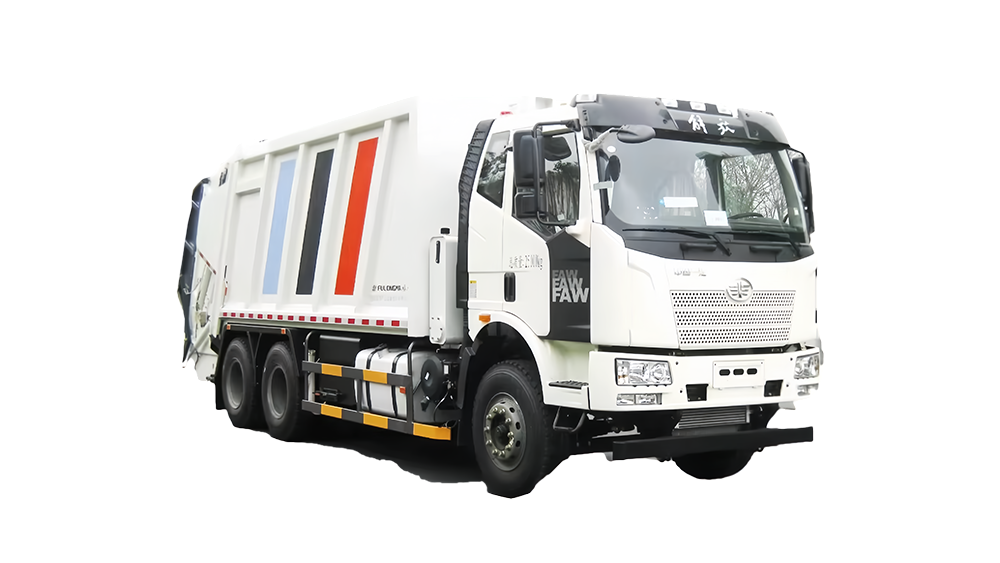

FAW Refuse Truck: Smart Collection for Cleaner Cities. Built on the robust FAW Truck chassis with efficient WEICHAI/YUCHAI engines (130-190HP), it delivers reliable waste collection performance. Multiple wheelbase options (3300-5250mm) ensure excellent maneuverability in urban areas. The spacious flat-roof cabin accommodates up to 3 crew members. FAW. Your Partner for Efficient and Hygienic Waste Management.

Product Details

Product Details

Box volume
8 m³ - 21 m³
Box shape
arc
Box material
Base 4 sides 4
Compression ratio
≥2.5
Effective volume of the filler
≥0.8m³
Loading cycle time
≤30 s
Time to shirk garbage
≤25s
Control method
Automatic, Manual
Maximum pressure of hydraulic system
16MPa
Multi-way directional valve
Yangzhou Zhongmei
hydraulic oil pump
Hefei Changyuan
Hydraulic cylinder
Xiamen Yinhua (same style as Zhonglian)
control system
CAN bus

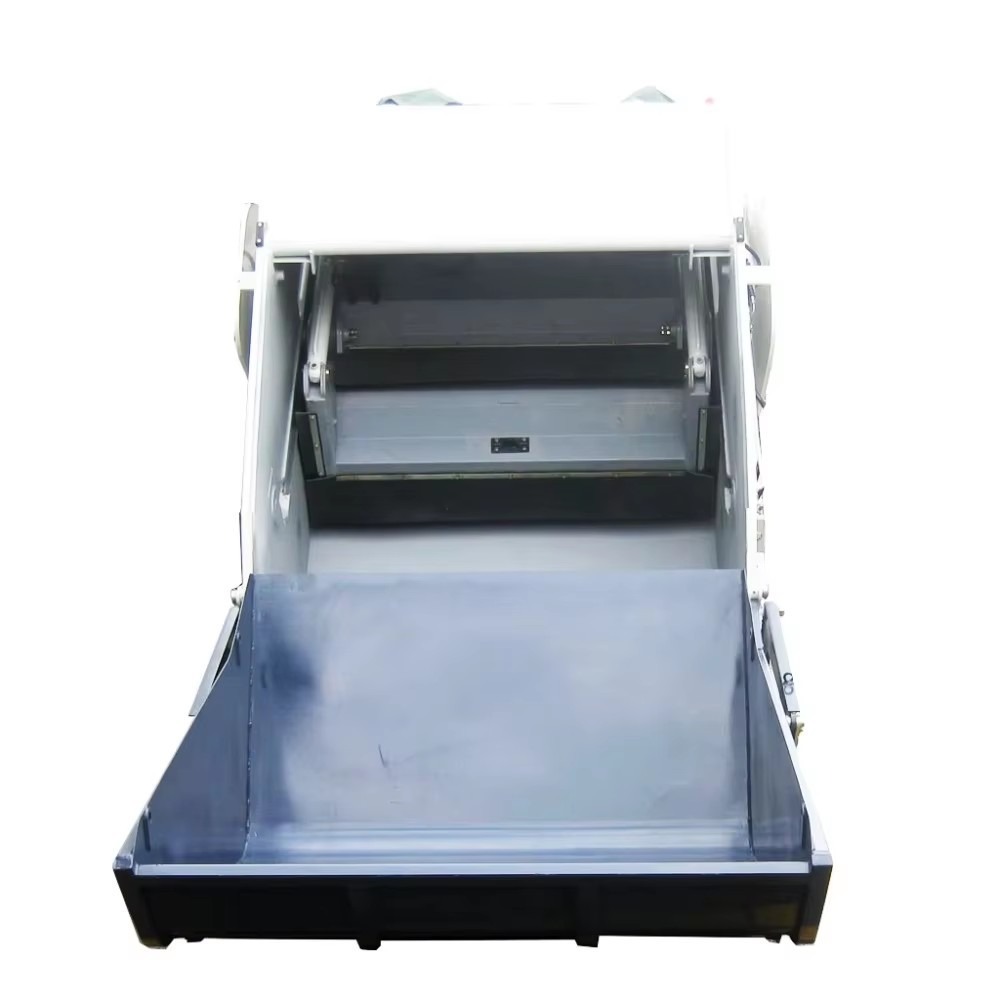

Tipping mechanism
Two 240L standard trash cans are hung at the same time.
