Product Details

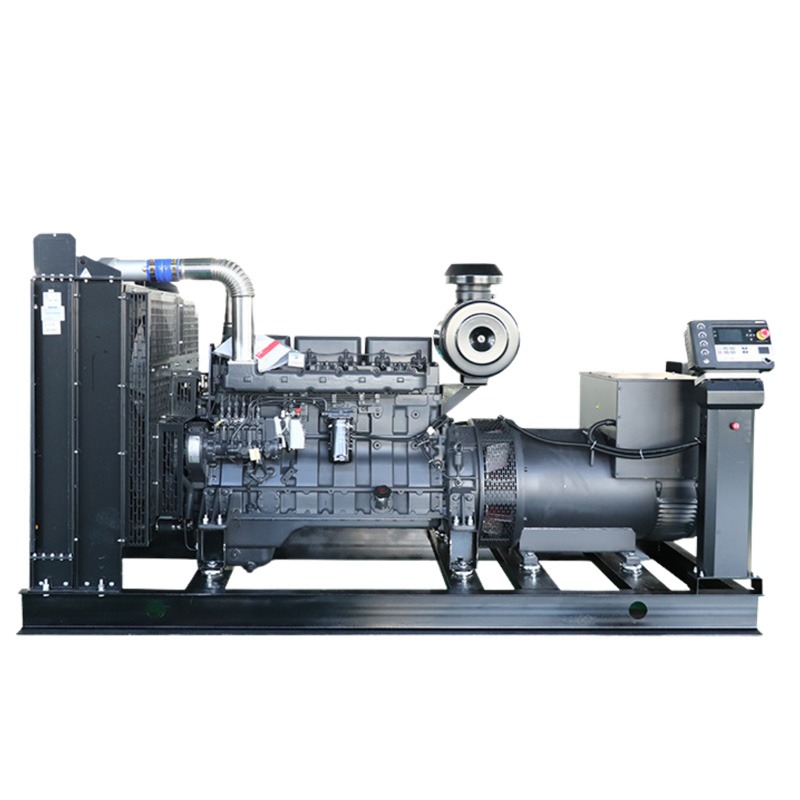

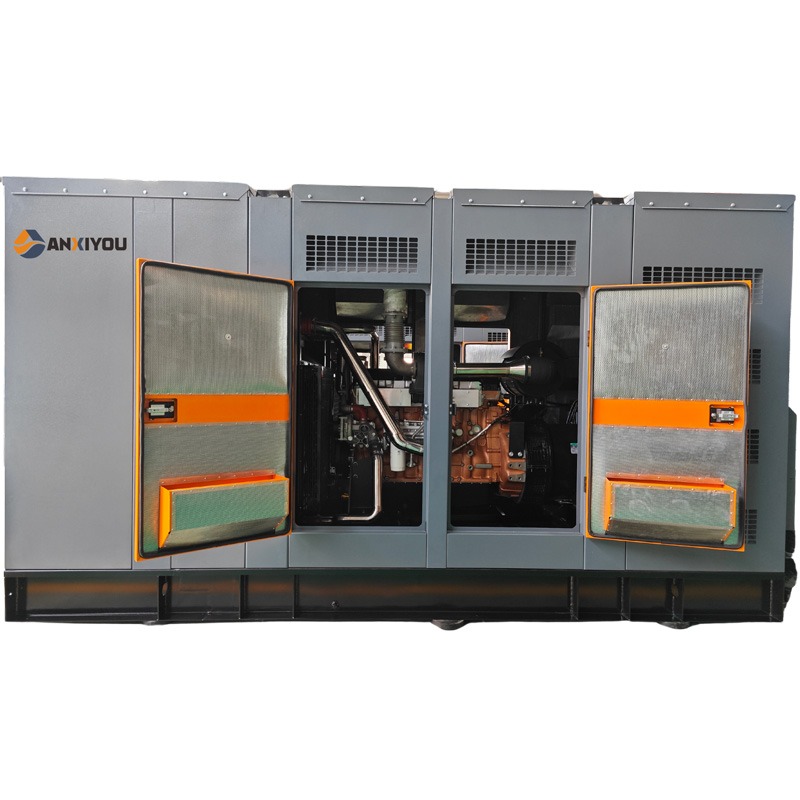

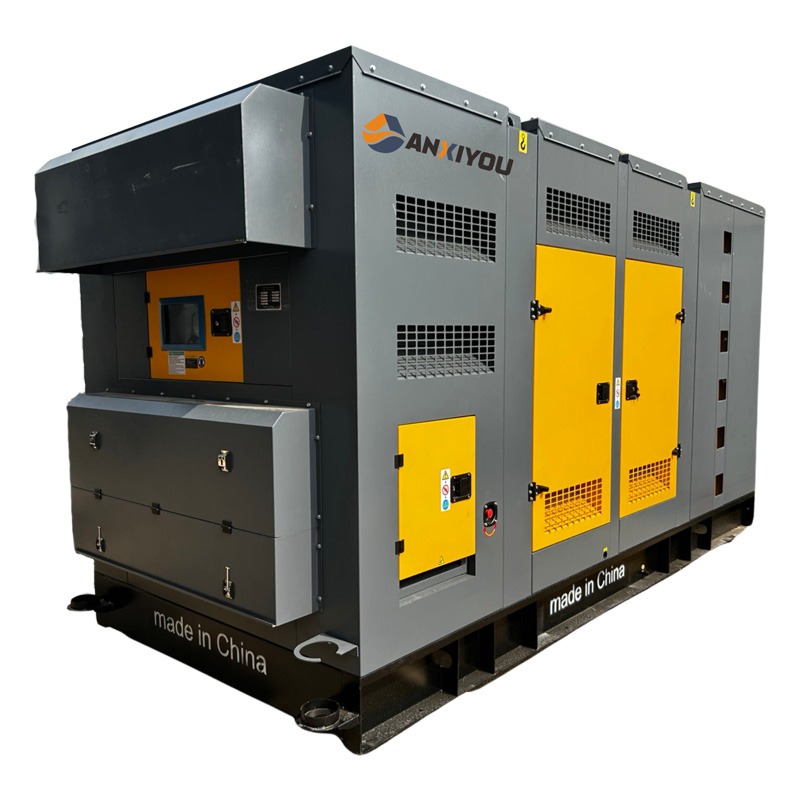

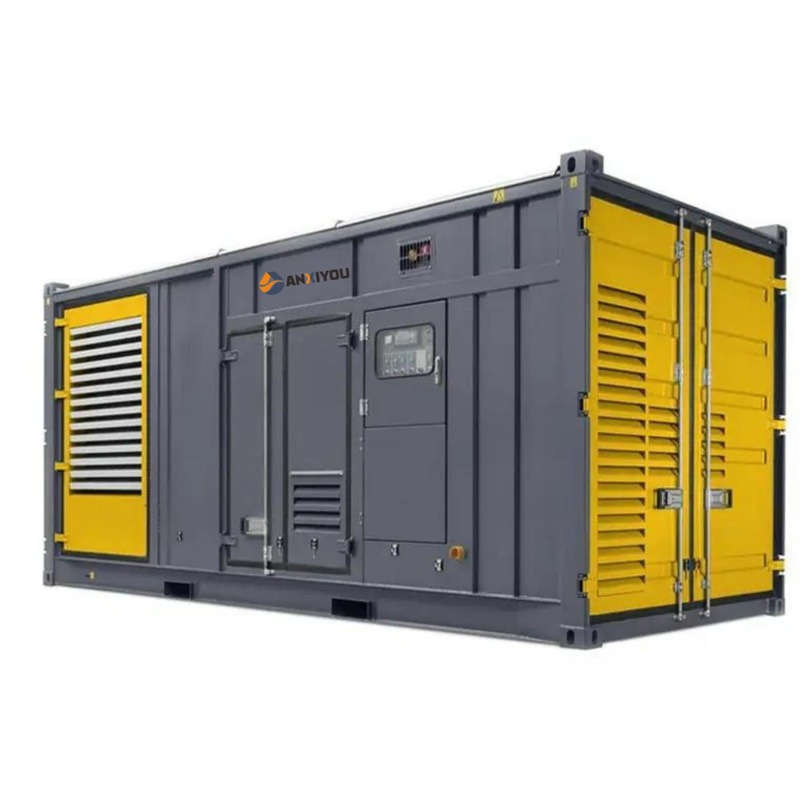

12-660KW ultra-quite Shangchai diesel generrator

  • Category : Diesel Generator Set
  • Sub Category :
  • SKU : 12-660KW ultra-quite Shangchai diesel generrator

Shanghai New Power Automotive Technology Co., LTD., formerly known as Shanghai Diesel Engine Co., LTD., was founded in 1947 and now belongs to SAIC. In 1993, it was restructured into A state-owned holding company issuing A and B shares at home and abroad. The company has the industry's first national technology center and postdoctoral workstation, adopts SAIC passenger car standard quality management system and advanced automated production line. In the 75 years of development, the cumulative production of various types of engines has exceeded 2.35 million units, with products all over the world.

Technical parameter
Technical parameter
Unit Model Recommended Unit Power Engine
Model 		Engine Power Engine
Displacement
(L) 		Frequency/Rated
speed
Common
Power
(KW) 		Reserve Power
(KW) 		Common Power
(KW) 		Reserve Power
(KW)
AXY-SC15 16 18 4Z23.3-G21 21 23 2.27 60HZ/1800
AXY-SC20 20 22 4Z27.7-G21 26 29 2.7 60HZ/1800
AXY-SC25 24 26 4Z30.0-G21 30 33 3 60HZ/1800
AXY-SC30 32 35 4Z32.2-G21 38 42 3.2 60HZ/1800
AXY-SC35 35 38 4ZT3.2-G21 42 46 3.2 60HZ/1800
AXY-SC50 50 55 4ZT3.5-G21 60 66 3.5 60HZ/1800
AXY-SC60 60 66 4ZT4.1-G21 70 77 4.1 60HZ/1800
AXY-SC65 64 70 4ZTAA4.1-G21 76 83 4.1 60HZ/1800
AXY-SC70 72 79 4ZTAA4.1-G31 80 88 4.1 60HZ/1800
AXY-SC50 50 55 4HT4.3-G21 62 68 4.3 60HZ/1800
AXY-SC55 55 60 4HT4.3-G22 67 74 4.3 60HZ/1800
AXY-SC70 72 80 4HT4.3-G23 86 95 4.3 60HZ/1800
AXY-SC90 90 100 4HTAA4.3-G21 105 116 4.3 60HZ/1800
AXY-SC100 100 110 4HTAA4.3-G22 120 132 4.3 60HZ/1800
AXY-SC120 120 132 6HTAA6.5-G21 136 150 6.5 60HZ/1800
AXY-SC130 128 140 6HTAA6.5-G22 150 165 6.5 60HZ/1800
AXY-SC165 165 182 6HTAA6.5-G23 180 198 6.5 60HZ/1800
AXY-SC180 180 198 6DTAA8.9-G21 205 226 8.9 60HZ/1800
AXY-SC200 200 220 6DTAA8.9-G24 228 250 8.9 60HZ/1800
AXY-SC220 220 242 6DTAA8.9-G23 255 282 8.9 60HZ/1800
AXY-SC280 280 308 6ETAA11.8-G21 307 338 11.8 60HZ/1800
AXY-SC320 320 352 6ETAA12.8-G21 368 405 12.8 60HZ/1800
AXY-SC360 360 396 6ETAA12.8-G32 401 441 12.8 60HZ/1800
AXY-SC400 400 440 6ETAA12.8-G310.1 450 495 12.8 60HZ/1800
AXY-SC450 450 495 6KTAA25-G311 520 572 25.2 60HZ/1800
AXY-SC500 500 550 6KTAA25-G310 572 629 25.2 60HZ/1800
AXY-SC560 560 616 6KTAA25-G38 622 684 25.2 60HZ/1800
AXY-SC600 600 660 6KTAA25-G32.1 685 754 25.2 60HZ/1800
AXY-SC660 660 726 6KTAA25-G31.1 728 800 25.2 60HZ/1800
1. The above parameters are for reference only and cannot be used as any legal basis in the contract.
2. The manufacturer has the right to adjust or change the above parameters, and the data after adjustment or change will not be notified.
generator 12-660KW ultra-quite Shangchai diesel generrator
